Installing a Varjo Ready PCIe card
Some PCs meet the other system requirements required to run the XR-4 series, but simply lack the specified USB-C port. In these circumstances, the simple addition of a compatible PCIe expansion card can solve this issue.

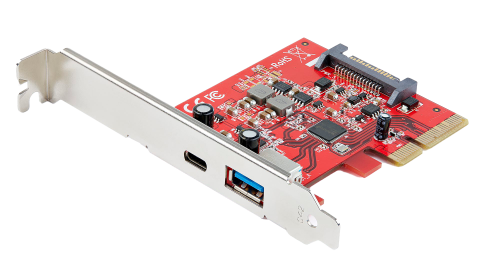

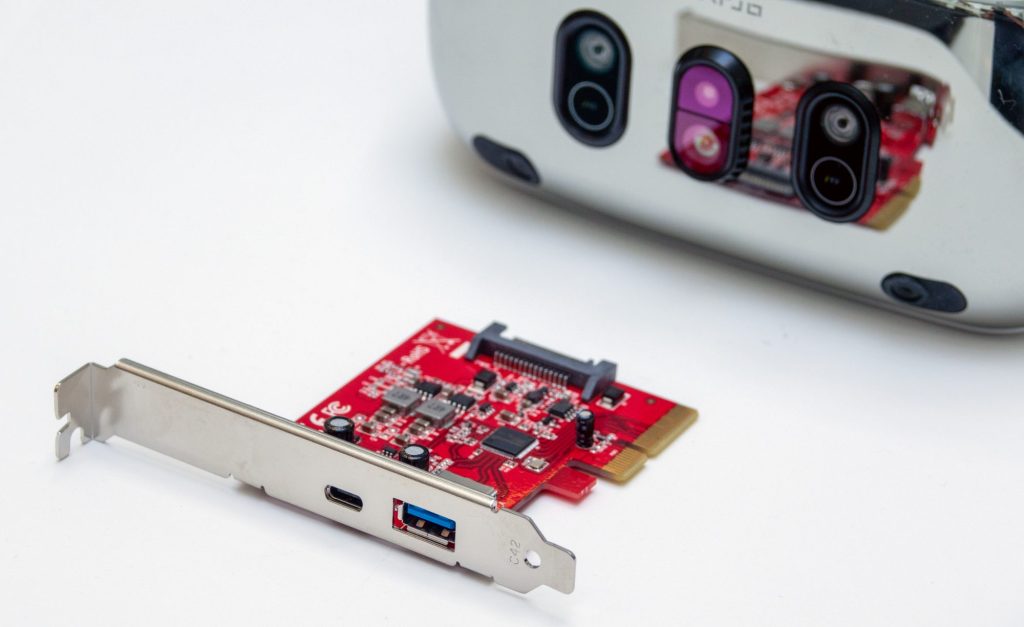

If you are looking to purchase a card for the purpose of running an XR-4 headset, we highly recommend that you purchase a Varjo Ready PCIe card via the Varjo sales team as this will ensure you have the correct model with the correct firm ware for the purpose.
Once you have a card ready to install, the simple steps to do so are listed below for a desktop PC (a quick process that should take a matter of minutes).
Step-by-Step instructions for installing a PCIe card

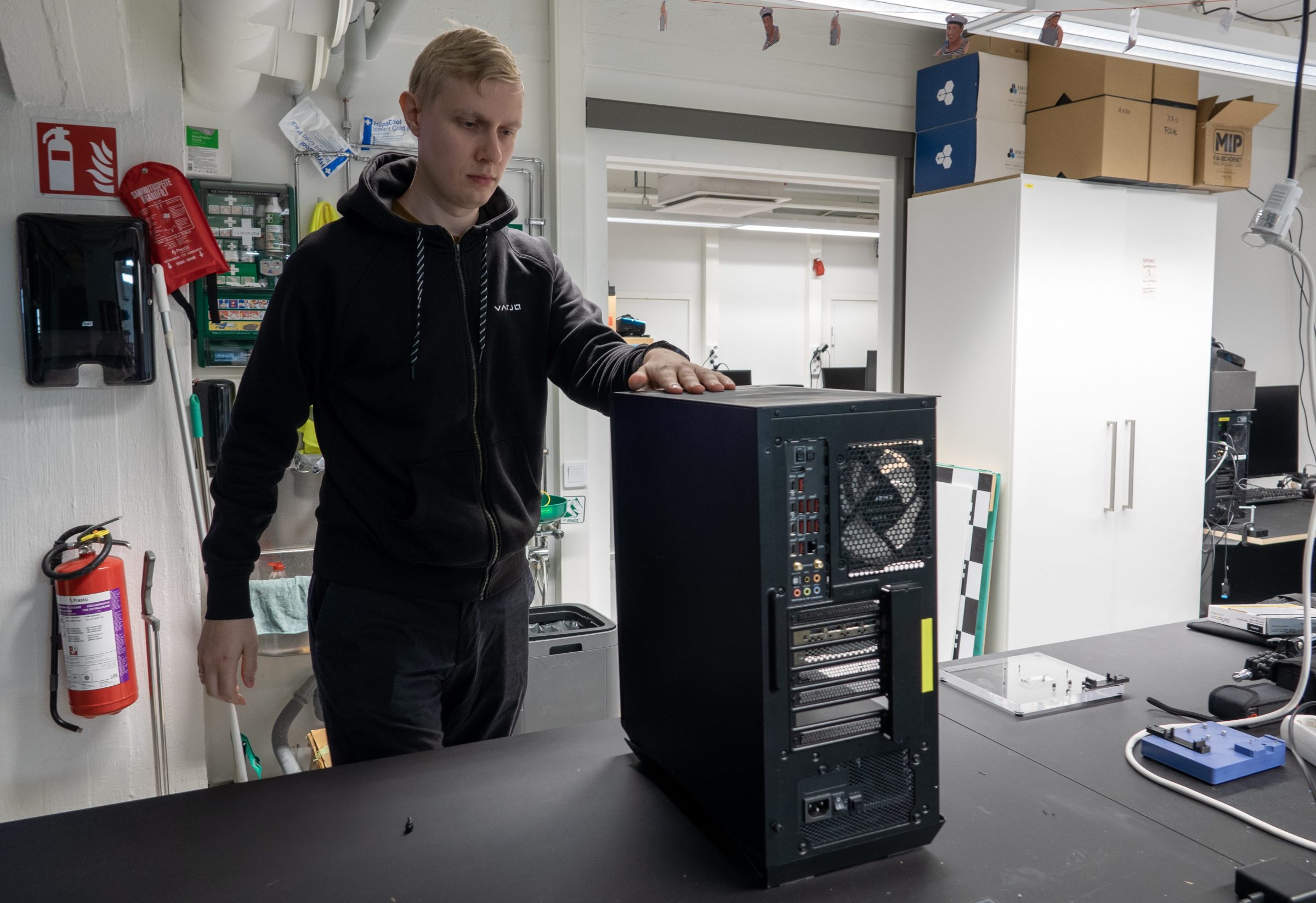

Power Down the PC and Unplug it
Power down your PC, allow it to cool and unplug it from the wall
Remove Side Panel
Removing the side panel of your PC case will give you easy access to the internals

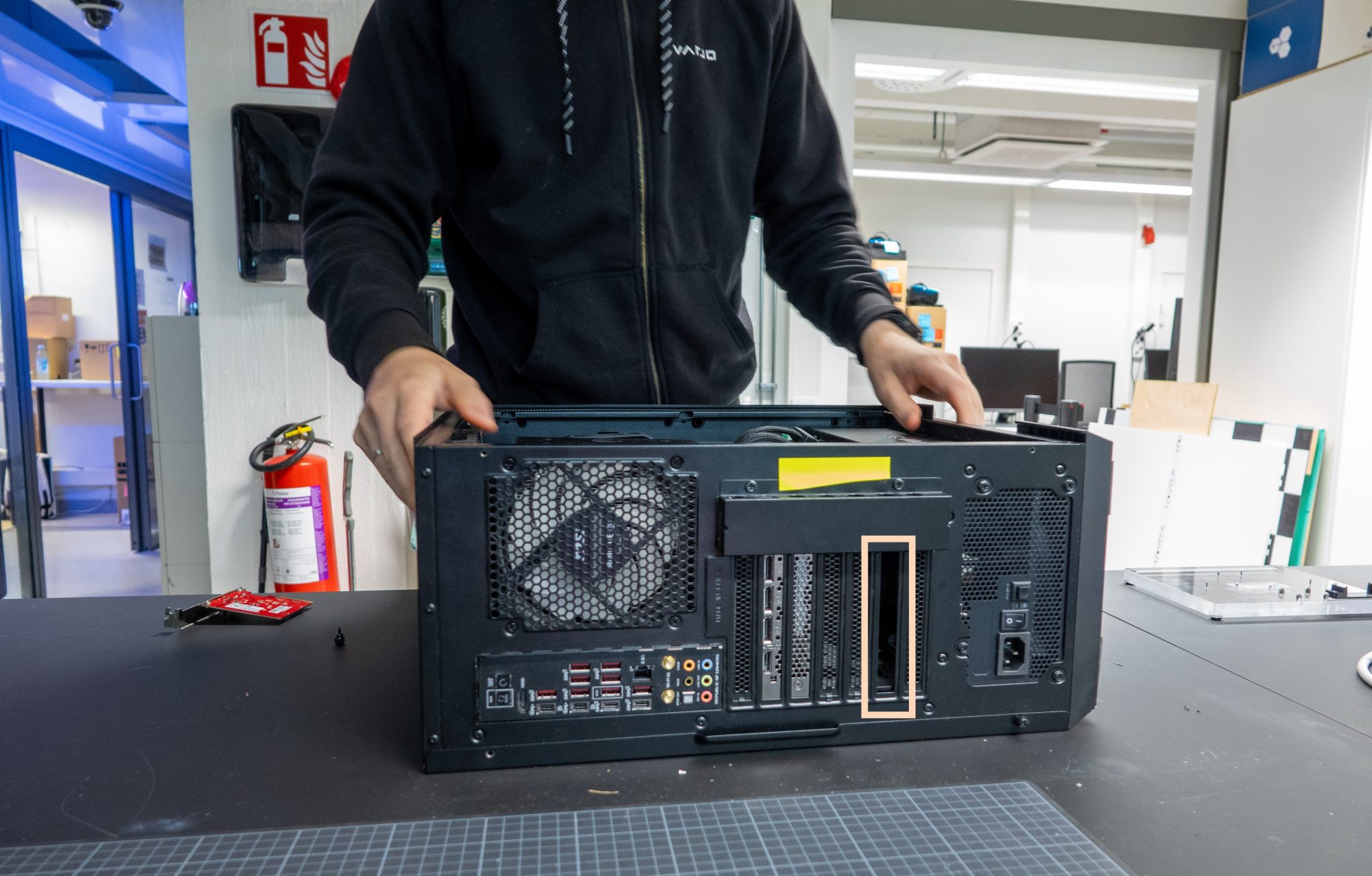

Locate Any Empty PCIe Port
Find an unused slot to install your PCIe card, as shown in the picture
Unscrew the Metal Plate Next to the Port
Generally desktop cases will have little plates covering the unused PCIe ports.
Install PCIe Card
Installing the card simply consists of clicking it into place, the pins on the card should give you a clear, self-explanatory of how it fits in.

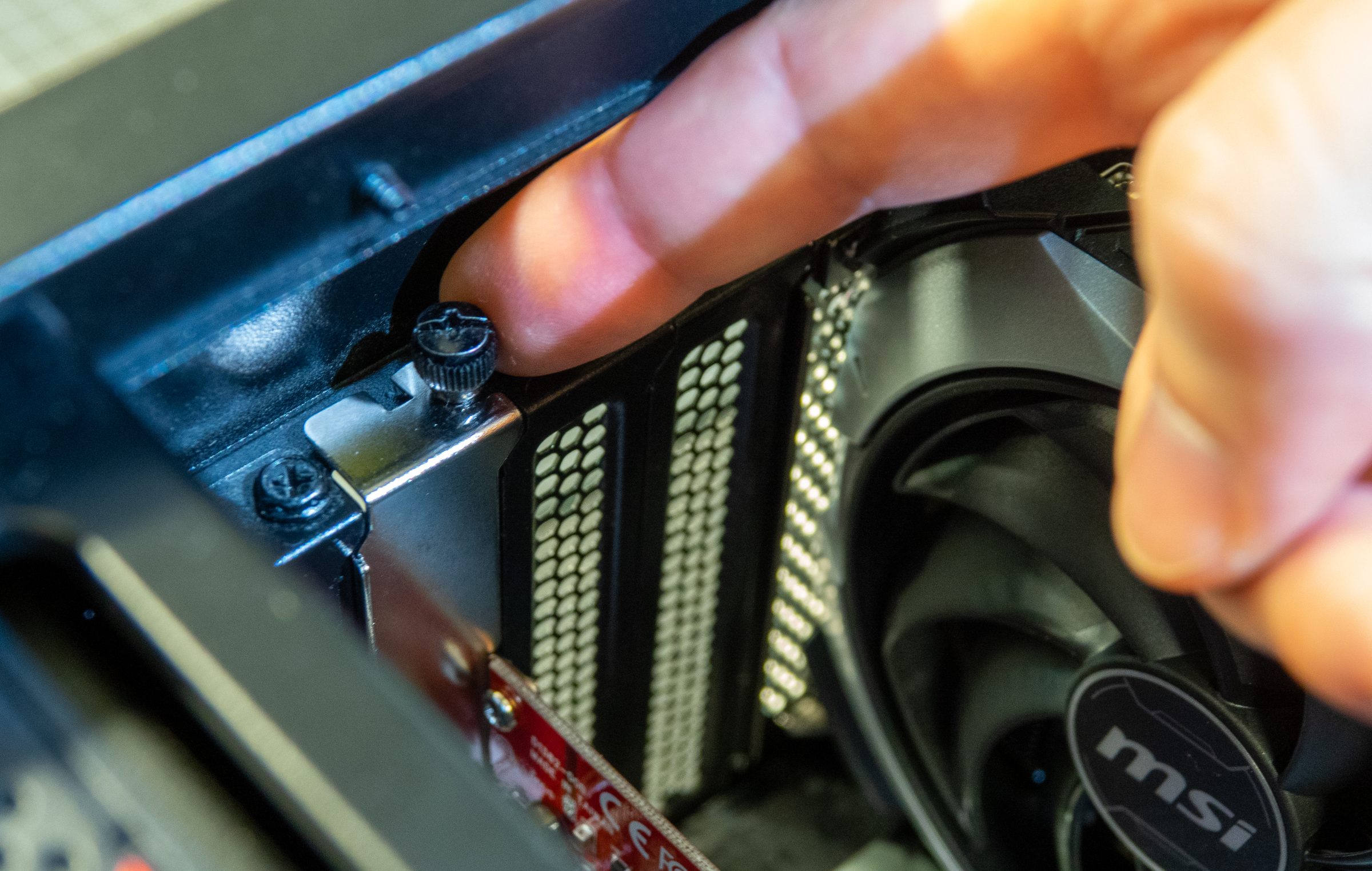

Screw the Card In
Be sure to screw the card in place once it has been installed
Re-Install the Side Panel
Boot the PC
After all these steps, plug your PC back in and it should recognize the PCIe card and function automatically after booting.
Ready To Go!
Installing the PCIe card should be quick and easy, but if it is not, do not hesitate to reach out to the Varjo Support Team. We are here to help.
Please note: Only the Varjo-Ready PCIe Expansion Card is guaranteed to be compatible with Varjo headsets. Firmware compatibility cannot be guaranteed with other products, or similar products purchased through other resellers. Please reach out to the Varjo Sales Team to guide you in purchasing the correct card.
